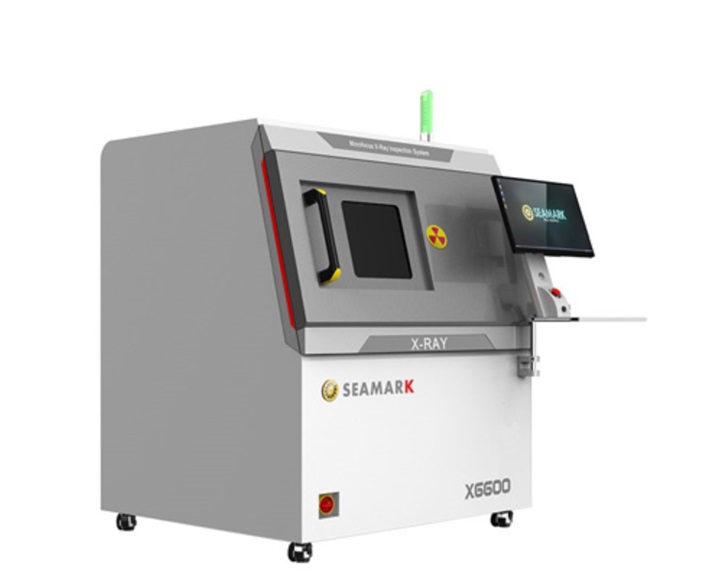

SEAMARK X-Ray Inspection Machine X6600
0.00$0.00
X6600 is a cost-effective general-purpose offline precision microfocus X-Ray inspection equipment. It is suitable for the inspection of various factory offline products. This AXI inspection machine has the characteristics of high magnification, multi-angle inspection, and a large-area inspection platform.
Features and Advantages
1. Meet the needs of the general industrial X-ray machine and have a wide range of applications.
2. A high-resolution design can obtain the best image in a very short time.
3. Infrared automatic navigation and positioning, quickly select the shooting location.
4. CNC detection mode, fast automatic detection for multi-point array.
5. Oblique multi-angle inspection makes it easier to detect sample defects.
6. Software operation developed by Seamark is simple and easy to use, low operating cost.
7. The X-ray tube and FDP can be rotated at the same time (0-60°), making the detection image clearer and more intuitive.
Applications :
1) Inspection of defects in IC encapsulation, e.g., layer separation, cracks, voids/voids and line integrity.
2) Chip size measurement, line curvature measurement, component solder area proportion measurement.
3) Possible defects in PCB manufacturing processes, e.g., misalignment, solder bridge and opening.
4) Inspection and measurement of SMT solder shorts, cold solder, offset components, solder deficiency, vacuum in solder.
5) Inspection of defects in open, short or abnormal connections that may occur in wiring harnesses and automotive connectors.
6) Inspection for internal breakage or voiding in plastic or metal.
7) Checks for uniformity of battery stacking and electrode welding.
8) Inspection of seed, biological material, etc.
X-Ray Tube Source
Type Sealed Micro-Focus X-Ray Tube
Voltage Range 90 kV, 130 kV
Operating Voltage Range 40-90 kV, 130 kV
Operating Current Range 10- 200 μA, 300 μA
Max Output Power 8 W, 39 W
Micro Focus Spot Size 5 – 15 μm
Flat Panel Detector
Type TFT Industrial Dynamic FPD
Pixel Matrix 1536 x 1536
Field of View 130 × 130 mm
Resolution 5.8 Lp/mm
Frame (1×1) 20 fps
A/D Conversion Bit 16 bits
