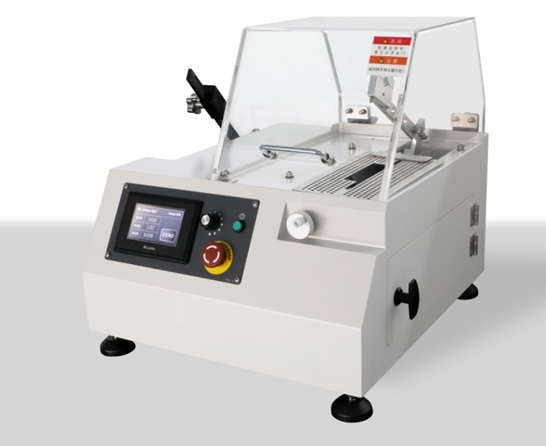

Iqiege 50S precision cutter
0.00$0.00
The machine is composed of fuselage, control panel, protective cover of cutting room, motor, transverse feed mechanism, loading lever mechanism, cooling system, diamond cutting piece and other components.
Description
The machine is composed of fuselage, control panel, protective cover of cutting room, motor, transverse feed mechanism, loading lever mechanism, cooling system, diamond cutting piece and other components. It can not only cut circular parts with diameter less than 50 mm, but also rectangular flat parts with height of 20 mm, width of 150 mm and length of 250 mm.
Technology Parameter
|
Max cutting ability |
∮50mm |
|
Accuracy X movement |
0.01mm |
|
Speed |
150～2000rpm |
|
X Movement |
40mm |
|
Water tank |
1L |
|
Power |
220V |
|
Dimension |
570×620×450mm |
|
Power |
120W |
|
Wheel |
external dia. 127-177mm, internal dia.12.7 or 25.4mm |
|
Cutting type |
Chop,With automatic shutdown protection function |
|
Net weight |
45kg |
|
Optional |
Cutting table |
